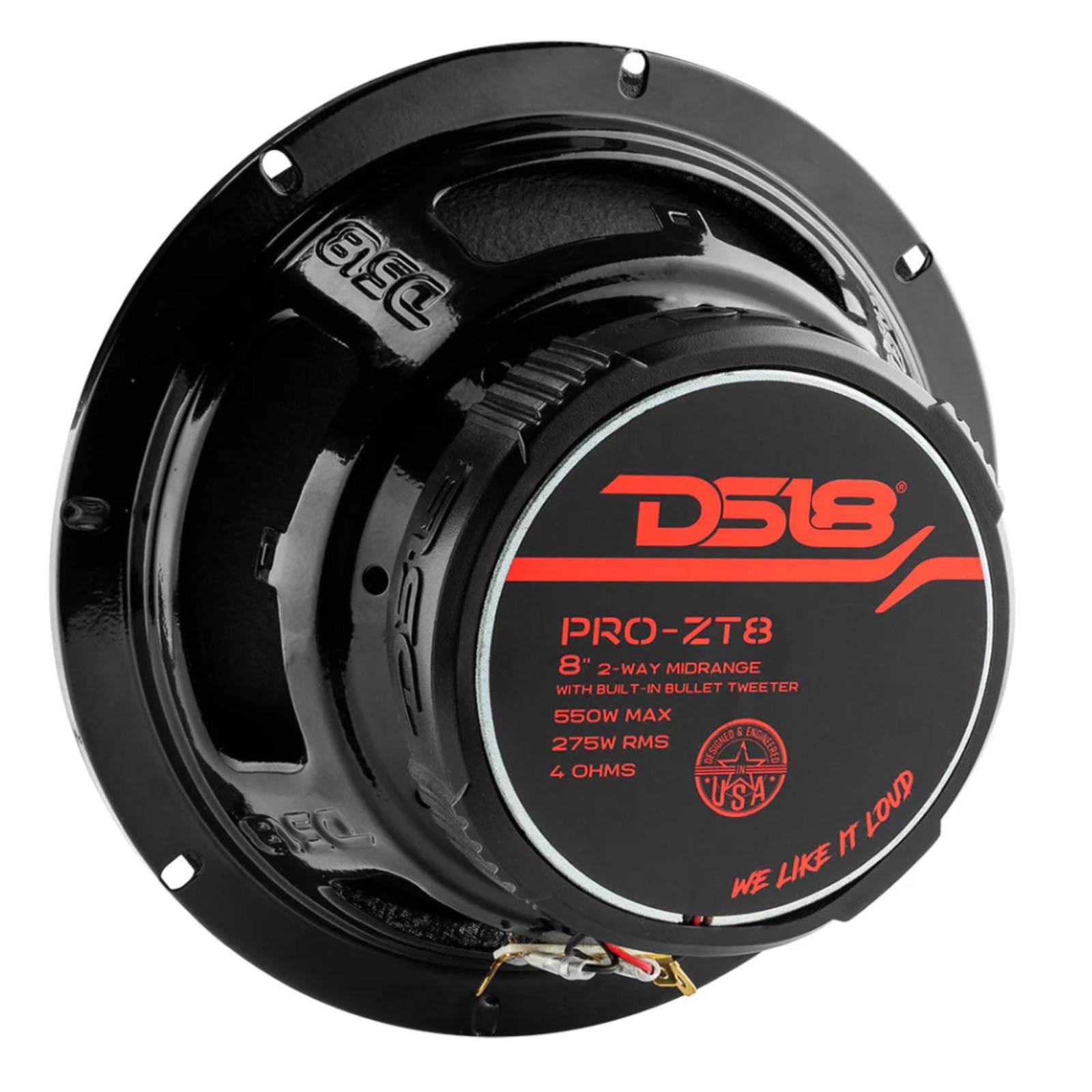

8" 275 Watt RMS 4-Ohm Motorcycle Mid Loudspeaker Built-in Tweeter DS18

DS18 8" Motorcycle Midrange Loudspeaker 550W 4 Ohm w/ Built-in Tweeter PRO-ZT8

This listing includes:

• (1) DS18 8" Motorcycle Midrange Loudspeaker 550W 4 Ohm w/ Built-in Tweeter PRO-ZT8

The DS18 PRO-ZT8 is a powerful 8-inch 2-way coaxial loudspeaker engineered for true pro audio enthusiasts who demand top-tier performance in an efficient package. Unlike traditional pro audio setups that require matching separate components, the PRO-ZT8 combines a high-output midrange driver and a built-in super tweeter into one compact speaker. This coaxial design simplifies installation while delivering a full-range frequency response from 65Hz to 22KHz. With 550 watts of max power and 275 watts RMS, it blasts clean, balanced sound even at max volume. Built with a robust ferrite magnet, a Kapton-wound voice coil, and a durable steel basket, the PRO-ZT8 is ready for extreme SPL builds or any system requiring professional sound with fewer components.

Specifications:

• Nominal Diameter: 8" (203.2 mm)


• Nominal Impedance: 4 Ohm


• MAX Power Handling: 550 Watts


• RMS Power Handling: 275 Watts


• Sensitivity (1W/1m): 98 dB


• Frequency Response: 65Hz - 22KHz


• Recommended Hi-Pass Crossover: 80Hz

Midrange Motor:

• Voice Coil Diameter: 1.5" (38.1 mm)


• Voice Coil Material: Kapton former with CCAW winding


• Basket Material: Steel


• Magnet Material: Ferrite


• Magnet Weight: 27 oz

Built-In Tweeter:

• Voice Coil Diameter: 1"


• Diaphragm Material: Aluminum


• Magnet Material: Neodymium (N38H)


• Magnet Weight: 0.44 oz

Thiele & Small Parameters:

• Vas: 12.4021 L


• Xmax: 16 mm


• Fs (Free Air Resonance): 110 Hz


• Qms: 3.906


• Qes: 0.76


• Qts: 0.636


• Re (DC Resistance): 3.2 Ohm

Dimensions:

• Overall Diameter: 8.42" (214 mm)


• Cutout Diameter: 7.13" (181 mm)


• Mounting Depth: 3.58" (91 mm)


• Overall Depth: 4.44" (113 mm)
